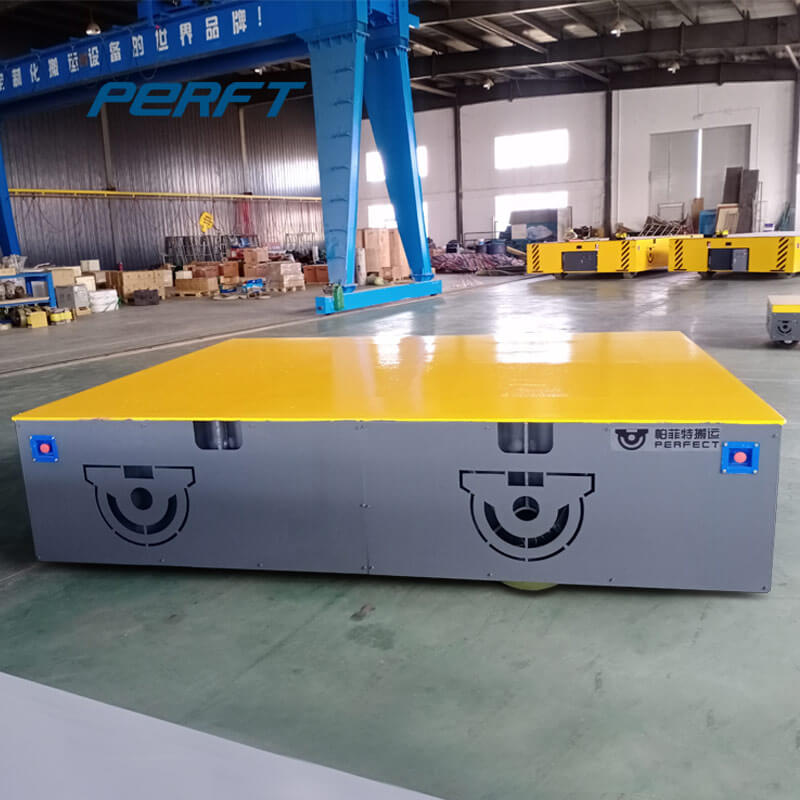

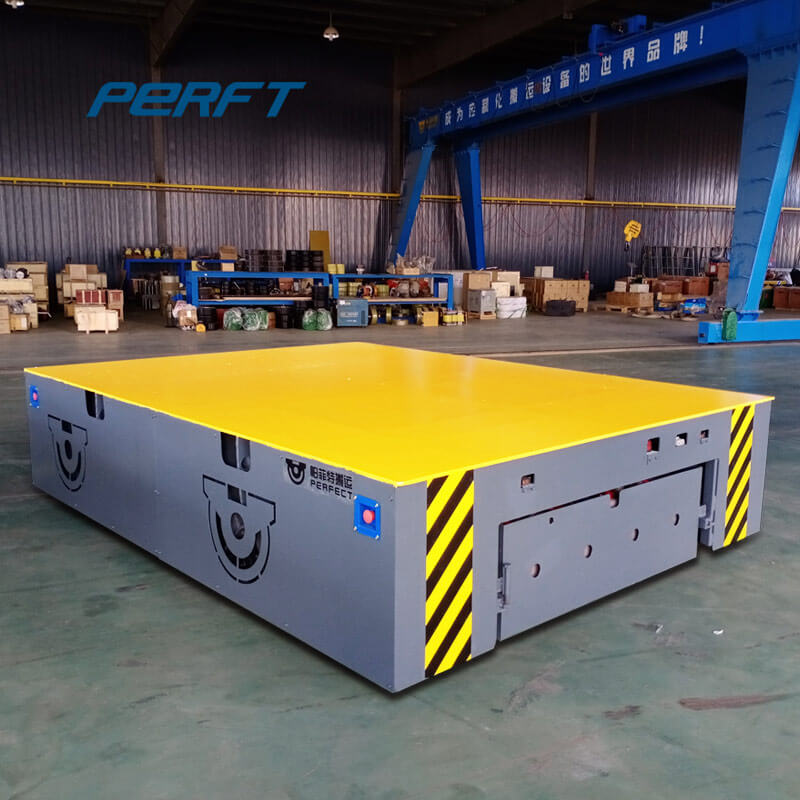

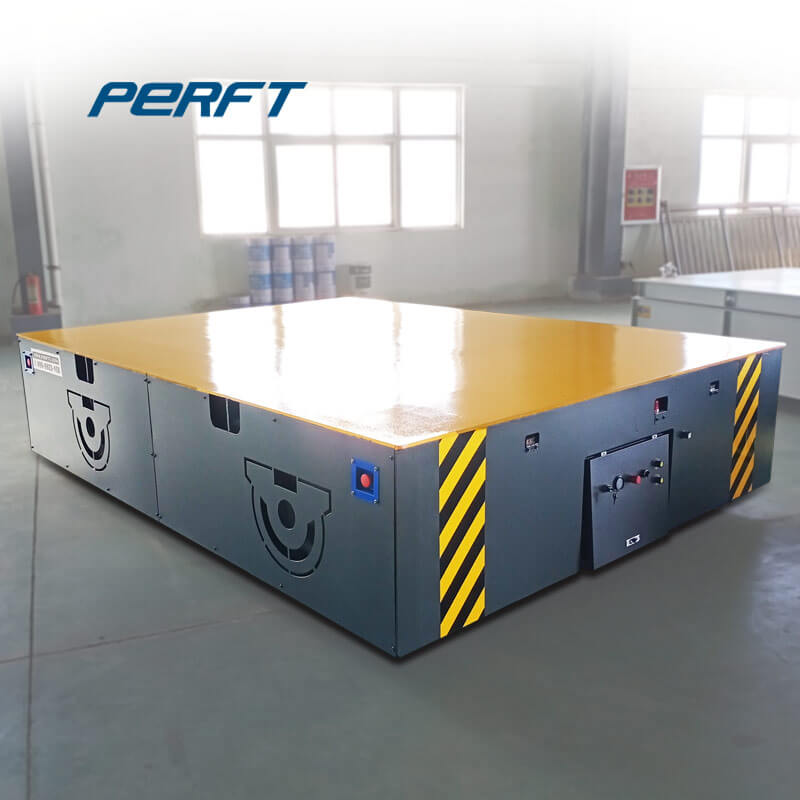

Steerable electric trackless transfer vehicle industrial tugger carts are used to move molds, coils or materials between the press room and the mold storage and maintenance area. The advantage of this kind of Steerable electric trackless transfer vehicle industrial tugger carts is that the entire length of the manufacturing facility can be moved, where the mold moved by the crane is limited by the travel distance of the crane, or must be transferred from the crane bracket to the crane bracket. Our standard heavy-duty design is controlled by a handheld button controller with a small turning radius.
APPLICATION:
The trackless tugger carts can be used for coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mold, beam, container, heavy equipment, aluminum product, compressor, polycrystalline silicon, motor, building materials, scrap, pallet and other material transport in the factory.
Mold | 5T | 10T | 15T | 20T | 30T | |
Rated Load(T) | 5 | 10 | 15 | 20 | 30 | |
Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | |
Height(mm) | 600 | 700 | 750 | 750 | 800 | |
Wheel Quantity | 4 | 6 | 8 | 8 | 12 | |
On cement floor | Tire Specification | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 |
Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire, Air Tire | |||||
On rail | Rail Inner Gauge(mm) | 1200 | 1435 | |||
Wheel Material | LD steel wheel, Angel box wheel | |||||
Frame Material | Q235 | Q345 | ||||
Color | Customized | |||||
Speed(km/h) | 0-20 | 0-15 |
you can contact us in the following ways.
-
Trackless transfer platform handling vehicles are composed of the power supply, transmission mechanism, steel structure load-bearing frame, steering system, walking mechanism, control module, and fault diagnosis module. We offer a wide range of specially designed material transfer carts to meet the unique needs of stamping and forming. These products include mold transport equipment, mold carts, and mold transfer carts, and mold trailer systems. This cart can be run on rail or concrete...
-
Steerable electric trackless transfer vehicle industrial tugger carts are used to move molds, coils or materials between the press room and the mold storage and maintenance area. The advantage of this kind of Steerable electric trackless transfer vehicle industrial tugger carts is that the entire length of the manufacturing facility can be moved, where the mold moved by the crane is limited by the travel distance of the crane, or must be transferred from the crane bracket to the crane bracket...
-
Product introduction: This motorized transfer handling vehiclet is powered by battery, traveling cable, rail, generator, or another way. This series Industrial Railroad Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, motorized transfer handling vehiclet is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another....
