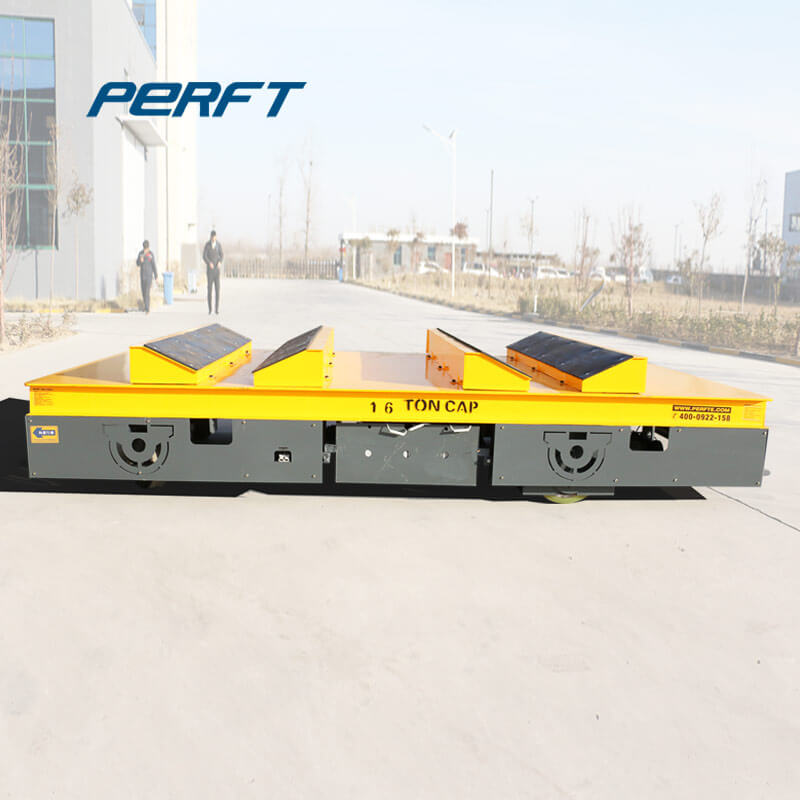

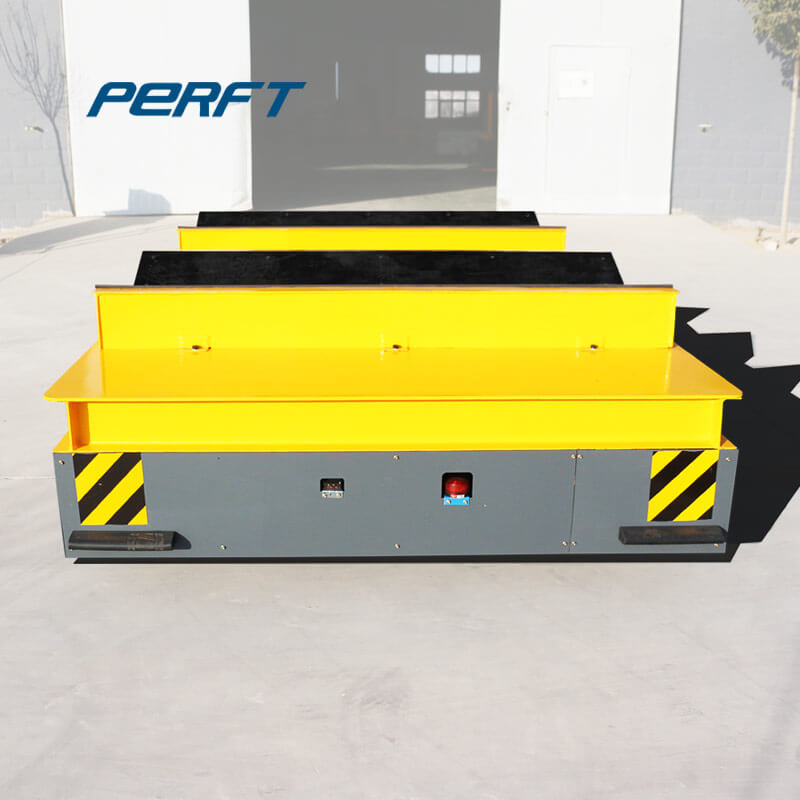

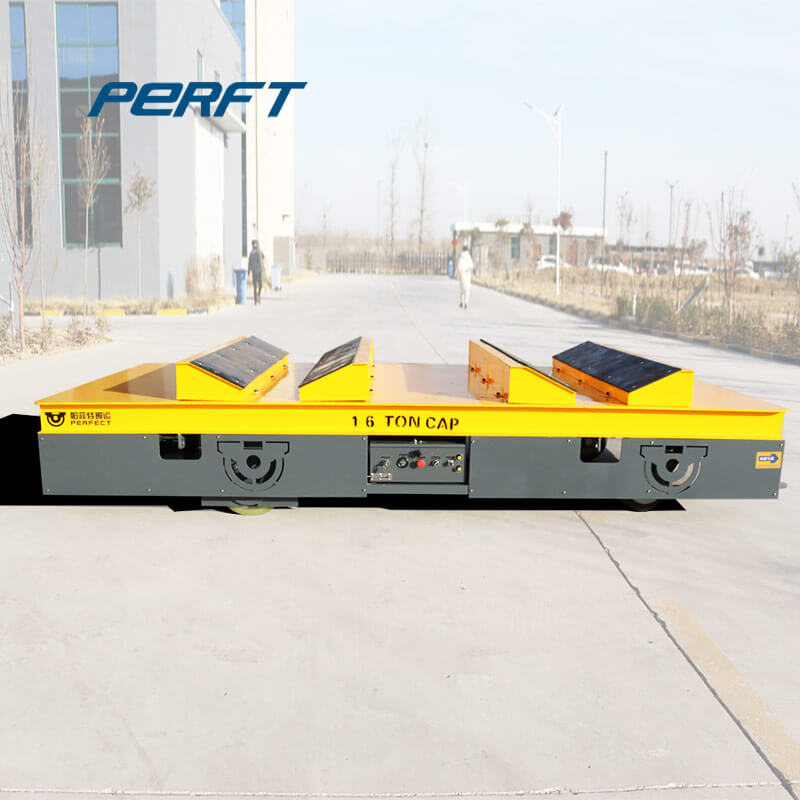

The heavy-duty battery-powered transfer vehicle is composed of batteries and is the power source for a series of flatbed vehicles. It powers the flatbed truck. The direct current flows into the distribution box and supplies the distribution box to the operating system and the motor.
Product Category
Description
Principle:
The heavy load battery powered transfer vehicle is made up of the battery as the power source of the series of flat cars. It supplies power to the flat car. The DC current flows into the electric box, and the electric box is supplied to the operating system and the motor. The control unit or the remote control controls the motor. Reverse, stop, etc., and then control the forward, backward, start, and stop of the flat car.
Applications:
Mold workshop, underground mine, engineering, aerospace, coal, nuclear energy, water conservancy, etc.
Advantage:
- The Heavy load battery powered transfer vehicle have safety and maneuverability, the operation is not limited by distance, the speed is adjustable, and the flat-car DC motor has the advantages of stable starting, large starting torque, small impact on the reducer, low voltage and long service life. The requirements for track laying are not high, and it is suitable for occasions with low frequency and long distance transportation.
- The heavy load battery powered transfer vehicle adopts a DC motor, which is suitable for frequent use and has higher safety and maneuverability. It can meet the transportation environment with high frequency of use and can be equipped with hard-tooth surface reducer, which makes the maintenance of flat car later simple.
- The heavy load battery powered transfer vehicle is relatively simple, easy to repair, easy to disassemble, strong carrying capacity, long service life, low requirements for track laying, low cost, suitable for harsh environments, high temperature environments and other occasions.
- Battery operated motorized material transfer carts on rail is suitable for various use environments, and can work in indoor, outdoor, inflammable and explosive environments, and can also add hydraulic devices, buffer devices, etc. on the flat car. The operation is simple. When the transportation distance is long, the on-board operation console can be added to the flat car to meet the long-distance transportation of the customer and realize the humanized design.
- The heavy load battery powered transfer vehicle can add PLC control system, automatic rail car, greatly increase work efficiency.
| 1 | Load capacity（t） | – |
| 2 | Maximum impact load（t） | – |
| 3 | Size specifications（mm） | (Customized） |
| 4 | Table height（mm） | Customized |
| 5 | Two-wheel track（mm） | – |
| 6 | Power supply mode | Lithium battery or battery |
| 7 | Operating mode | Car handle or remote control |
| 8 | Drive mode | Motor driven |
| 9 | Brake method | Mechanical + automatic brake |
| 10 | Running speed（km/h） | 0-30（Adjustable speed） |
| 11 | Running noise | ≤70db |
| 12 | Wheel diameter（mm） | – |
| 13 | Continuous running time | 4-6h |
| 14 | Stationary state | Will lock, unlock |
