Product introduction:

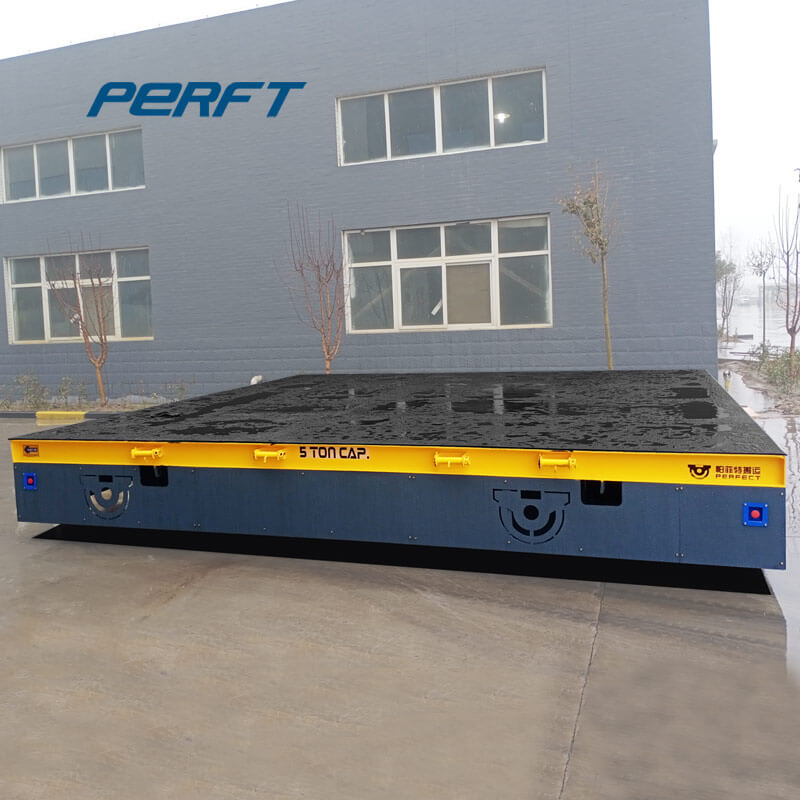

This motorized transfer handling vehiclet is powered by battery, traveling cable, rail, generator, or another way. This series Industrial Railroad Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, motorized transfer handling vehiclet is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another.
Features of motorized transfer handling vehiclet :
1.The series flat car has adjustable speed, saves transportation time and is easy to operate by wireless remote control.
2.The components adopt Chinese military grade components and can also be matched with Siemens and other partner components.
3.The trackless transfer vehicle on the cement floor can realize 360° direction steering, which is suitable for long-distance, low-frequency unfixed routes.
| Model | BWP-2T | BWP-50T | BWP-150T | |
| Rated load (T) | 2 | 50 | 150 | |
| Table size | length(L) | 2000 | 5500 | 10000 |
| Width(W) | 1500 | 2500 | 3000 | |
| Height(H) | 450 | 650 | 1200 | |
| Wheel Base (mm) | 1200 | 4200 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ500 | Φ600 | |
| Motor Power (Kw) | 1 | 5 | 15 | |
| Battery Capacity(Ah) | 180 | 330 | 600 | |
| Battery Voltage(V) | 24 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 3.3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 174 | 265.2 | |
you can contact us in the following ways.
-
Trackless transfer platform handling vehicles are composed of the power supply, transmission mechanism, steel structure load-bearing frame, steering system, walking mechanism, control module, and fault diagnosis module. We offer a wide range of specially designed material transfer carts to meet the unique needs of stamping and forming. These products include mold transport equipment, mold carts, and mold transfer carts, and mold trailer systems. This cart can be run on rail or concrete... -

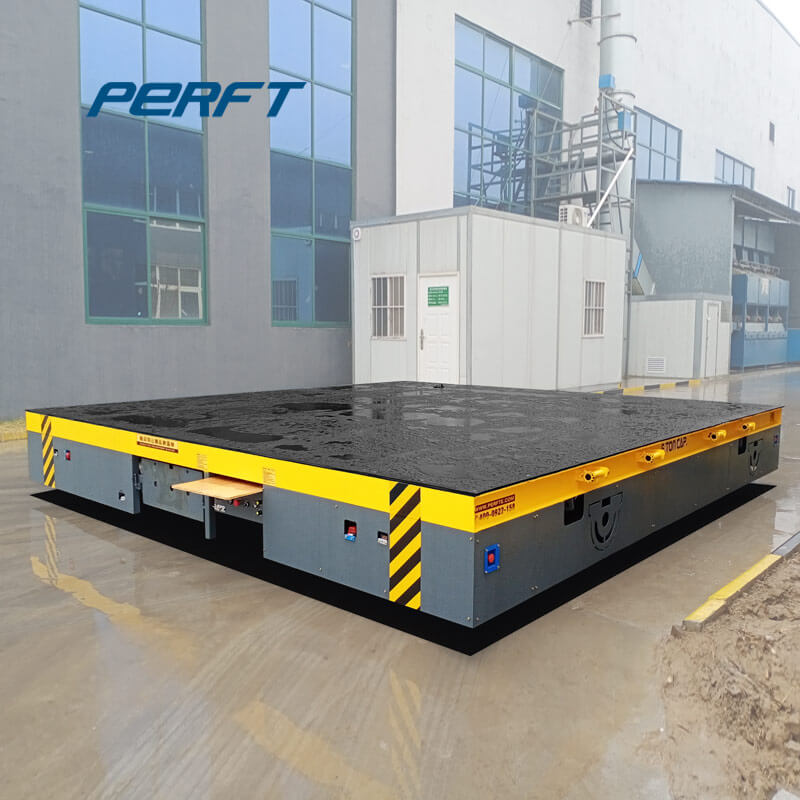

Steerable electric trackless transfer vehicle industrial tugger carts are used to move molds, coils or materials between the press room and the mold storage and maintenance area. The advantage of this kind of Steerable electric trackless transfer vehicle industrial tugger carts is that the entire length of the manufacturing facility can be moved, where the mold moved by the crane is limited by the travel distance of the crane, or must be transferred from the crane bracket to the crane bracket... -
Product introduction: This motorized transfer handling vehiclet is powered by battery, traveling cable, rail, generator, or another way. This series Industrial Railroad Vehicle is able to run between two perpendicular tracks and the car is also could run on L-form track or S-form track or curved track. Also, motorized transfer handling vehiclet is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another....
