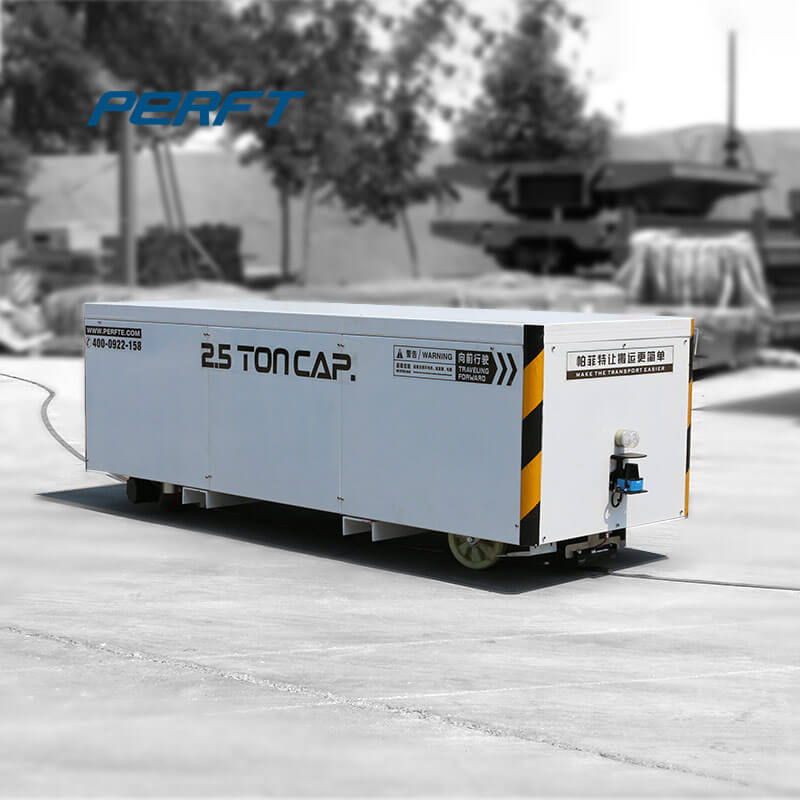

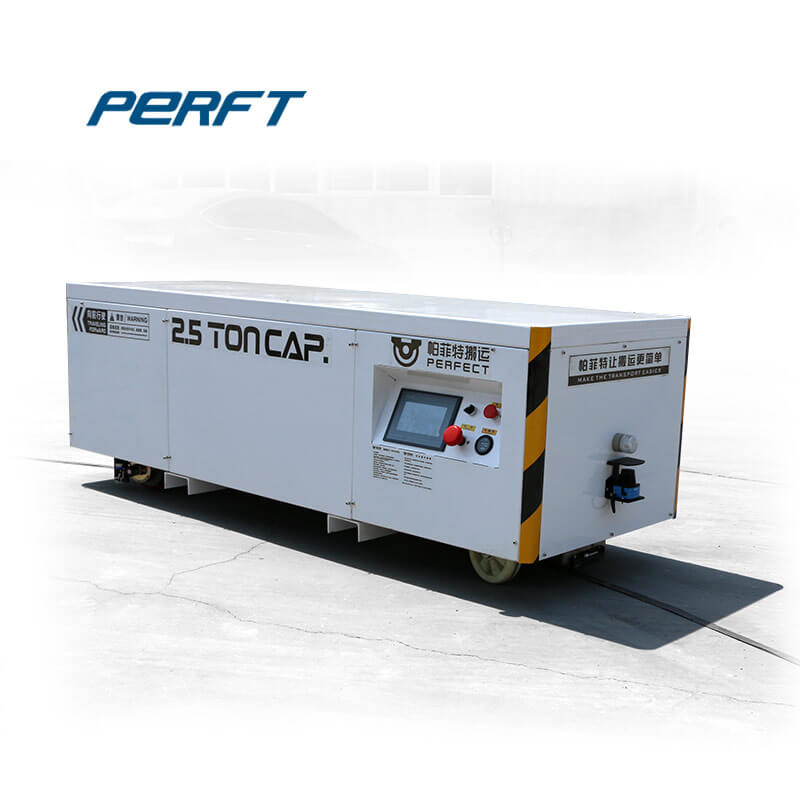

Heavy Duty Automatic Shuttle Coil Carrier Agv Transport System
Introduction: Heavy duty automatic shuttle coil carrier Agv transport system permit the 380V alternating current get in the electric control system directly and then drive the motor to make it sta...
Call Center: +86 193 3738 3023
Share us:
Description

Introduction:

Heavy duty automatic shuttle coil carrier Agv transport system permit the 380V alternating current get in the electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It’s usually used for short distance transportation.



Application:

We produce a wide range of AGV Motorized Transfer Wagon , railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines. We are sure to provide the product you want.



Parameter

Model BTL-2t BTL -20t BTL -50t BTL -100t BTL -150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Recommended Rail Model P15 P24 P43 QU100 QU100
